Ensuring weld joint integrity, while applying acceleration technology to shorten the construction period
-
- Automated Pipe Welding Technology
- This technology automates pipe welding using a 360˚ rotating welding device (carriage) and verified welding conditions, in which welding is performed automatically based on the welding variables input into the equipment.
-

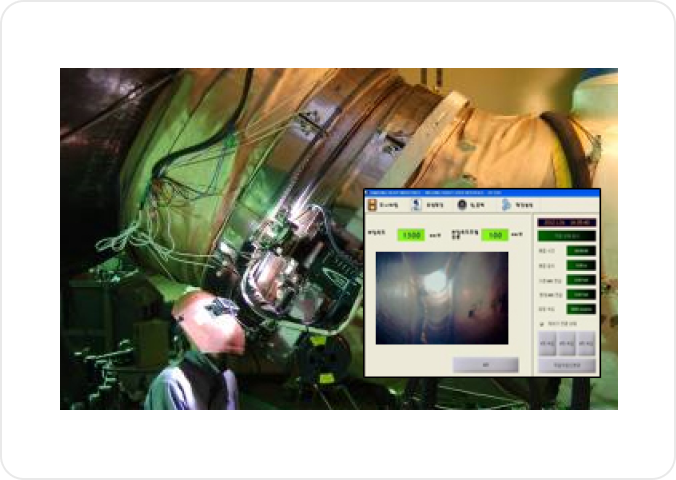

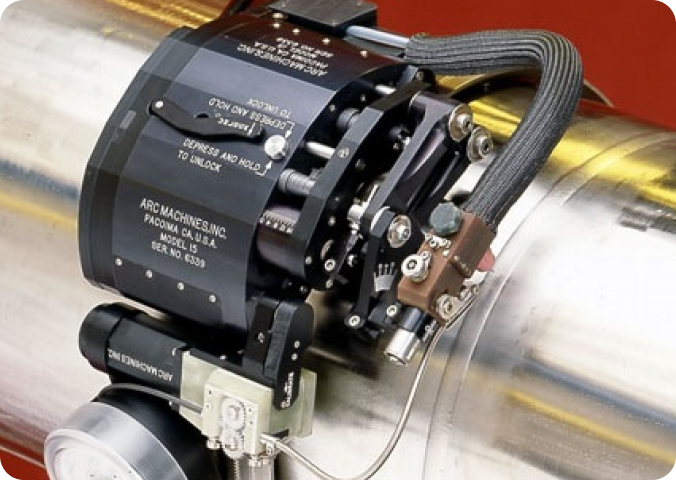

GTAW orbital automatic welding
-
- Nuclear Reactor Coolant Pipe Automatic (Mechanical) Welding Technology
- Nuclear reactor coolant pipes serve as connections between the primary components of the nuclear steam supply system (reactor, steam generator, reactor coolant pump). These pipes consist of 42-inch hot legs, 30-inch cold legs, and crossover legs. Automatic (mechanical) welding technology utilizes an automatic welding machine to perform outer and inner diameter welding, which leads to improvements in quality and a shortened construction time.
-
Analysis and selection of pipe automatic welding construction conditions
-
- Special Steel Welding Technology
-
Welding is a special process, with results that are influenced by process management or the welder's skills, and verifying the quality specified through product inspection or testing can be challenging. Consequently, a PQ test is conducted based on the requirements outlined in the code and standard. Welding construction conditions are analyzed and selected to ensure the soundness of on-site welded joints.
-WPS : Welding Procedure Specification
-PQR : Procedure Qualification Record
-

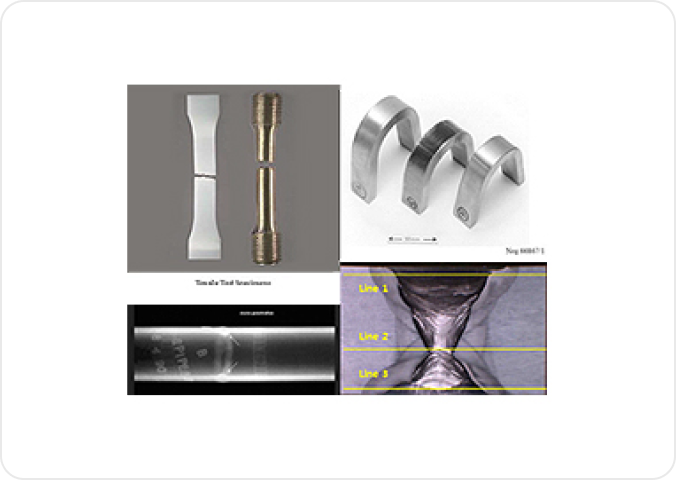

Selection and analysis of welding construction conditions through a PQ test
-
- Weld Joint Soundness Evaluation Technology
- This comprehensive technology analyzes damage causes, encompassing the melting and casting, forming, processing, heat treatment, and use condition analysis of metal materials, which ensures the soundness and safety of the product.
-

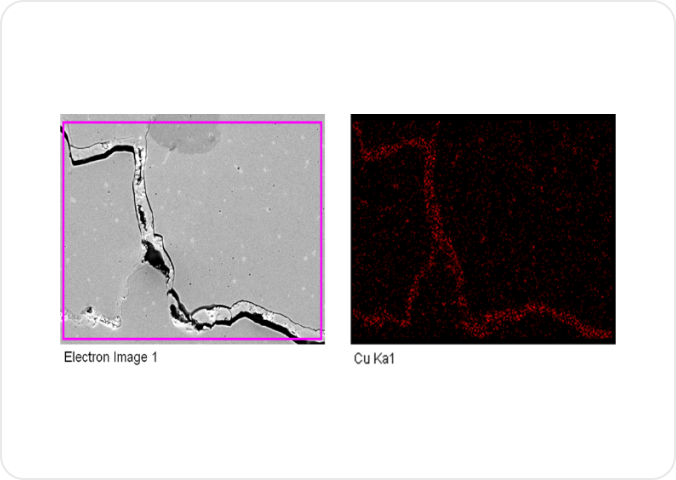

Macro analysis and elemental mapping
-
- Metal Corrosion Damage Evaluation Technology
- A comprehensive technology that examines the root causes of corrosion damage, including the processing, heat treatment, and use conditions analysis of the base material and weld joint, which ensures the soundness and safety of metal products.
-

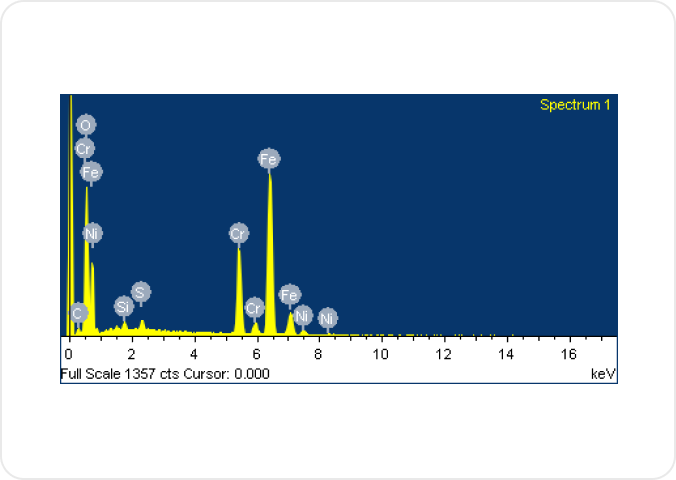

Metallographic analysis and EDS/SEM
